Vertical Compactor OptiPak Series



Verticle Compactors

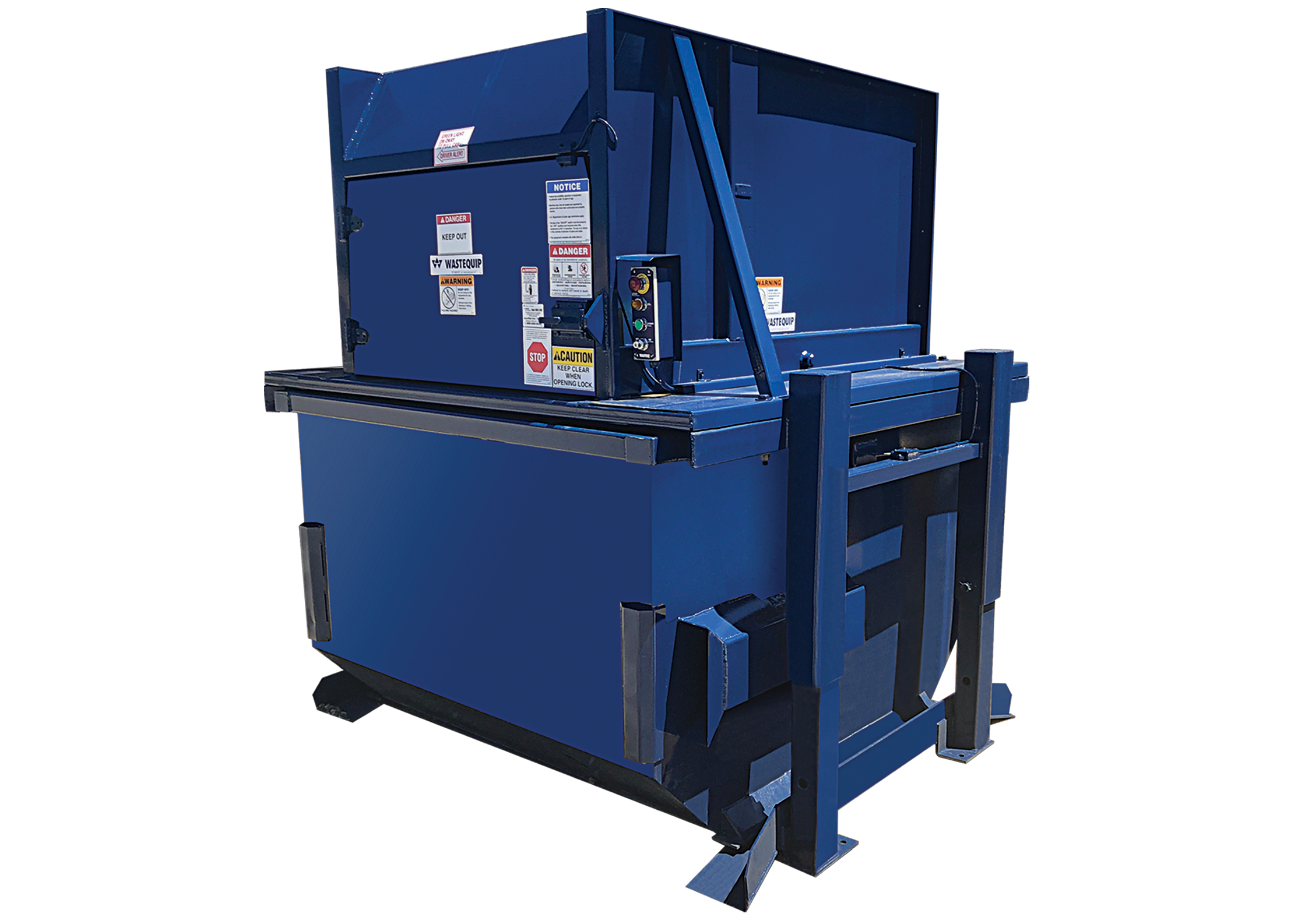

Wastequip's vertical compactor, the OptiPak, stands out from the competition with its 30-second cycle time. Along with its 18” of ram penetration and over 25,000 lbs. of ram force ensures maximum compaction to meet your business's needs.



Product Features:



  • 4-in-1 head can be changed to feed from front, rear, left side or right side
  • Selectable operational modes reduce complexity and extend service life
  • Full Container Light alerts you when trash is ready for pickup
  • Electronic door/container interlock ensures safe operation
  • Low-temperature oil works well in hot or cold climates*
  • Driver LED Light is illuminated when it is safe for the hauler to remove the container
  • Built-in stops hold the container in place to prevent movement during compaction



Available Models & Sizes:



  • OptiPak Series: 3-yard, 4-yard, 6-yard, 8-yard compactors



Compactor Compatability:



  • Waste Type: General waste, recyclables
  • Common Industries: Small businesses, restaurants, convenience stores



Warranty & Certifications:



  • 1-1-1 Warranty (1-year structural, 1-year parts and 1-year labor)





*Use of an oil heater or extreme cold weather hydraulic oil is recommended in extreme cold conditions.
NOTE: Single-phase operation will result in variations in hydraulic pressure, overall force, and cycle time.

Product Specifications
<strong>Standard Features</strong>: </br>• Driver Light to indicate when the container is safe for the driver to remove it</br>• Full container light</br>• Magnetic Interlock preventing operation if door is open</br>• Operational and service manual</br>• Built-in stops that hold the contain
</br><strong>Optional Features</strong>: </br>• Chute extension</br>• Loading platform with safety rail</br>• Through the wall installation</br>• Oil Heater</br>• Automatic odor suppression system</br>• Biodegradable oil</br>• Single phase operation available
</br><strong>Charge Box</strong>: </br>• Wastequip rating: 0.5 cu. yds.</br>• Wastec rating: 0.42 cu. yds.</br>• Compactor weight with stand and container</br>• 3,340 lbs. (3-yard)</br>• 3,540 lbs. (4-yard)</br>• 3,740 lbs. (6-yard)</br>• 3,940 lbs. (8-yard)
</br><strong>Compactor Head</strong>: </br>• Sides: 12-gauge, 42" H x 76" L</br>• Top deck: 12-gauge, 84 1/4" W x 84" L
</br><strong>Ram</strong>: </br>• Ram height: 36”</br>• Ram penetration: 18.00”</br>• Face plate: 7-gauge, 48” W x 36” H</br>• Base plate: 7-gauge, 47-1/2” W x 19” H</br>• Side plates: 7-gauge, 36” W x 19-11/16” H
</br><strong>Electrical</strong>: </br>• Motor: 3hp TEFC housing [ 2hp ]</br>• Voltage: 208/230/460, 3-phase 60 Hz [ 115/208/230 ]</br>• Power box: UL rated, TEFC housing</br>• Automated cycle operation: turn-key switch-ram extends, retracts and stops automatically</br>
</br><strong>Hydraulic Performance</strong>: </br>• Pump: 2.8 gpm [ 1.8 gpm ]</br>• Pump type: Gear</br>• Hydraulic oil tank: 8.7 gallon reservoir</br>• Cylinder bore/rod/stroke: 4” bore, 2” rod 16” stroke</br>• Normal ram face pressure: 25,100 psi [ 20,700 psi ]</br>
Dimensions

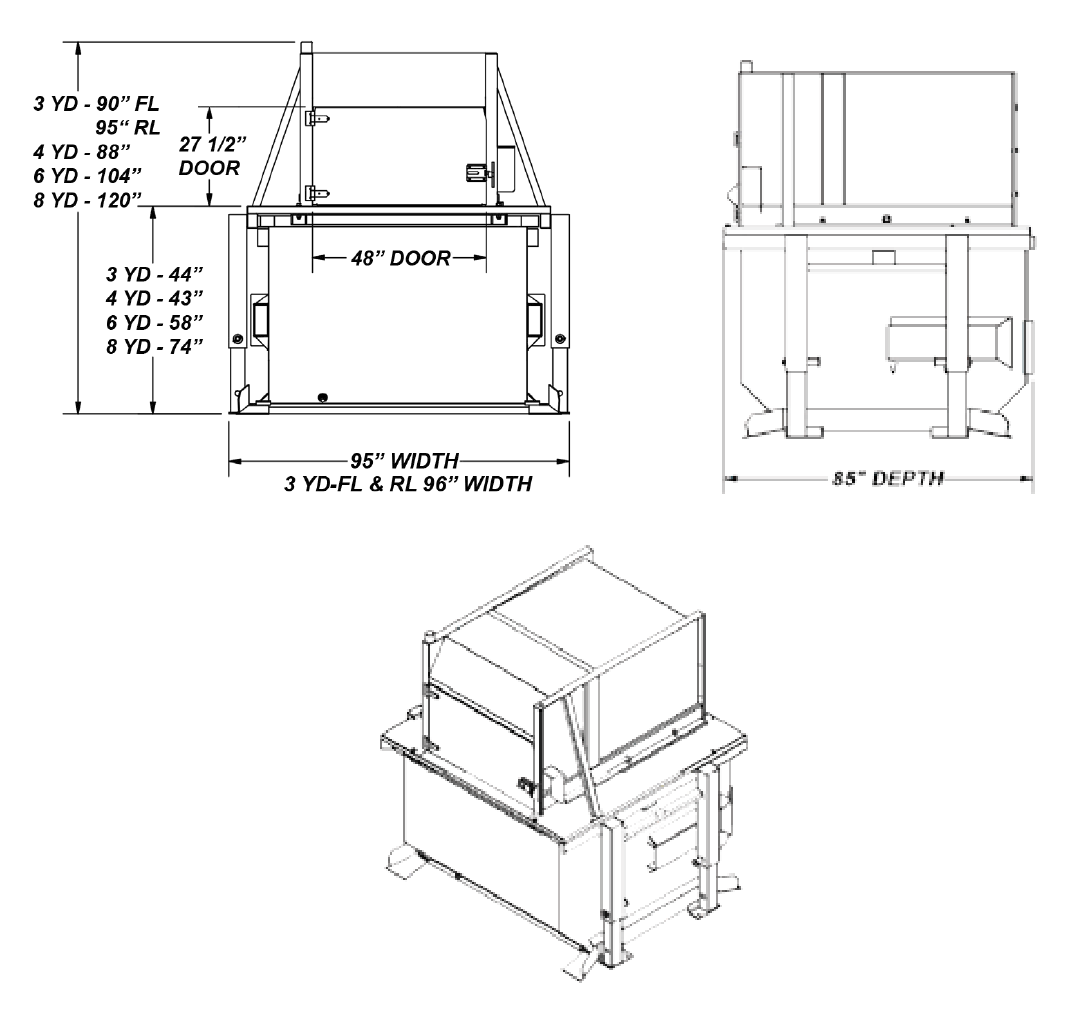

OptiPak Dimensions:

OptiPak Dimensions
